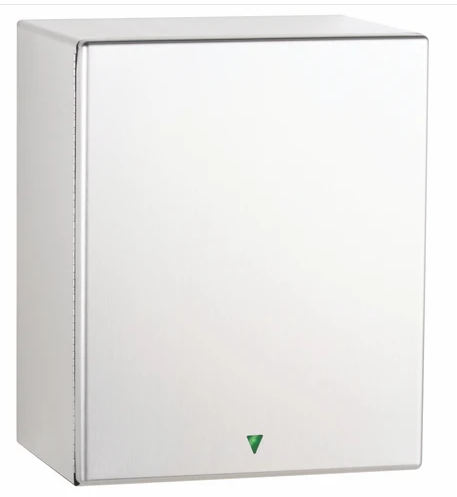

B-2974- Bobrick Automatic Surface-Mounted Roll Paper Towel Dispenser

MATERIALS:
Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin
finish. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Door — 18-8, Type-304, 20-gauge (0.9mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Secured to cabinet with a full length stainless steel piano-hinge.
Automatic Roll Towel Dispenser — Durable, high-impact resin materials. Accepts universal standard-core, nonperforated rolls 8" (203mm) wide, 8" (203mm) diameter. 800 ft (244 m) long. Dispenses one towel per dispense and can be set to dispense paper towels at three different lengths. Accommodates up to 3-1/2" (89mm) diameter stub roll

OPERATION:
Adjustable (2", 3.5", 4") electronic sensor automatically dispenses towel when hands are placed under the towelnopening. Intuitive LED light on door directs patrons to dispense area. Dispenses universal, 1-1/2" to 2" (38 to 51mm) diameter core, up to 8" (203mm) diameter, 8" (203mm) wide, non-perforated, non-proprietary paper towel rolls. LED light on door flashes green when dispenser is ready to dispense, flashes red if not ready to
dispense or in need of service. Towel length can be set to short 10", medium 12" and long 14" lengths. Dispenser includes a 3-1/2" (89mm) diameter stub roll feature.
POWER REQUIREMENTS:
Dispenser is powered by 4, “D” size alkaline batteries (not furnished) or an external 6-volt AC to DC switching power supply. Power supply is an optional accessory: order Bobrick Part No. 3974-57. (For non-U.S. compatible
plugs, order Part No. 3974-58).
